10/3 Corrugated 0.5 Thick Galvanised Roof Sheet 762mm Cover Width

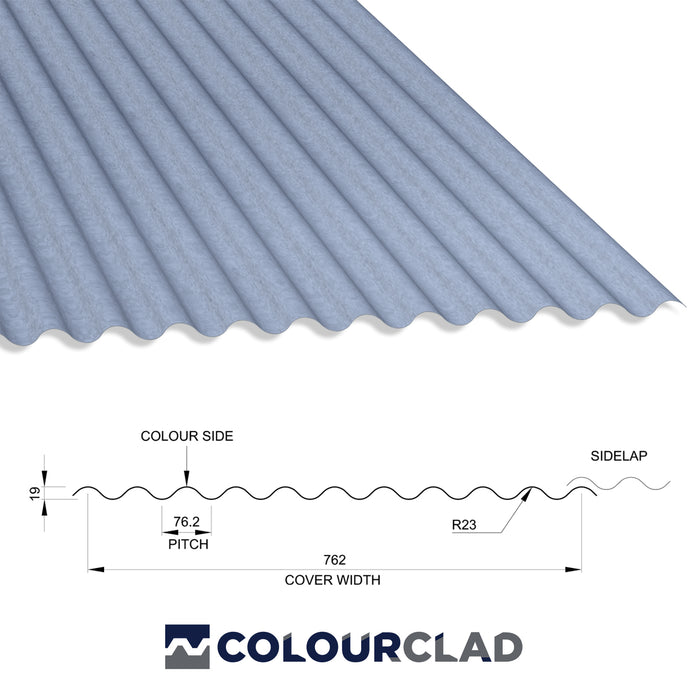

Colour Clad Profiles 10/3 Single Skin 0.5mm Galvanised Corrugated Roofing Sheets deliver an effective solution for your roofing requirements. Colour Clad can manufacture corrugated in your required length, offering a traditional cladding style. Our 10/3 is considered a more traditional roofing profile which can be found on many domestic and agricultural sites throughout the UK. Our sheets can be used for domestic, commercial and industrial applications and offer a high-quality, cost effective solution for your roofing projects. CCP10/3 offers a 76.2mm pitch across the sheet width and 19mm profile height and a rounded finish. CCP10/3 Galvanised sheeting is manufactured using Prime material and manufactured in house ensuring quality is delivered every time. Each of our sheets offer 762mm cover width when lapped. If you would like to see what other Roofing Sheets we offer please click here.
- Cover Width: 762mm when lapped
- Profile Height: 19mm
- Pitch: 76.2mm
- Sheet Thickness: 0.5mm
- Minimum Roof Pitch: 4 Degrees
- Weight: 0.5mm = 4.9kg per/m approx.
- Max Sheet Length: 6m in 0.5mm thickness, longer lengths we recommend 0.7mm
- Colours: Galvanised
Imposed Load (+ve)
Narrow Flange in Compression (Single Span)
Deflection Limit L/200 *
FACTORED IMPOSED LOADS (kN/m2) (positive +ve) |
|||||||||||||||||
Thickness (mm) |
Weight (kg/m2) |
Span Condition |
Span (m) |
||||||||||||||
1.00 |
1.10 |
1.20 |
1.30 |
1.40 |
1.50 |
1.60 |
1.70 |
1.80 |
1.90 |
2.00 |
2.10 |
2.20 |
2.30 |
2.40 |
|||
0.50 |
4.95 |
Single |
1.58 |
1.17 |
0.89 |
0.70 |
0.56 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
Double |
2.03 |
1.74 |
1.51 |
1.32 |
1.17 |
1.04 |
0.89 |
0.74 |
0.62 |
0.52 |
- |
- |
- |
- |
- |
||
Multi |
2.43 |
1.95 |
1.49 |
1.16 |
0.93 |
0.75 |
0.61 |
0.51 |
- |
- |
- |
- |
- |
- |
- |
||
0.70 |
6.47 |
Single |
2.34 |
1.74 |
1.33 |
1.04 |
0.83 |
0.67 |
0.55 |
- |
- |
- |
- |
- |
- |
- |
- |
Double |
3.66 |
3.10 |
2.66 |
2.31 |
1.99 |
1.61 |
1.32 |
1.10 |
0.92 |
0.78 |
0.67 |
0.57 |
- |
- |
- |
||
Multi |
3.91 |
2.90 |
2.22 |
1.73 |
1.38 |
1.11 |
0.91 |
0.76 |
0.64 |
0.54 |
- |
- |
- |
- |
- |
Wind Suction Load (-ve)
Broad Flange in Compression (Single Span)
Deflection Limit L/150 *
FACTORED IMPOSED LOADS (kN/m2) (positive +ve) |
|||||||||||||||||
Thickness (mm) |
Weight (kg/m2) |
Span Condition |
Span (m) |
||||||||||||||
1.00 |
1.10 |
1.20 |
1.30 |
1.40 |
1.50 |
1.60 |
1.70 |
1.80 |
1.90 |
2.00 |
2.10 |
2.20 |
2.30 |
2.40 |
|||
0.50 |
4.95 |
Single |
1.87 |
1.41 |
1.08 |
0.85 |
0.68 |
0.55 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
Double |
3.10 |
2.56 |
2.15 |
1.83 |
1.58 |
1.33 |
1.10 |
0.92 |
0.77 |
0.66 |
0.56 |
- |
- |
- |
- |
||
Multi |
3.12 |
2.34 |
1.80 |
1.42 |
1.14 |
0.92 |
0.76 |
0.63 |
0.53 |
- |
- |
- |
- |
- |
- |
||
0.70 |
6.47 |
Single |
2.78 |
2.09 |
1.61 |
1.27 |
1.01 |
0.82 |
0.68 |
0.57 |
- |
- |
- |
- |
- |
- |
- |
Double |
4.56 |
3.77 |
3.17 |
2.70 |
2.33 |
1.99 |
1.64 |
1.36 |
1.15 |
0.98 |
0.84 |
0.72 |
0.63 |
0.55 |
- |
||
Multi |
4.64 |
3.49 |
2.68 |
2.11 |
1.69 |
1.37 |
1.13 |
0.94 |
0.80 |
0.68 |
0.58 |
0.50 |
- |
- |
- |
Notes
- This table has been produced for roof cladding applications. However, it can be safely used for wall cladding.
- Safe Imposed loads factored by 1.6 Wind suction loads factored by 1.4
- Deflection limit applied to imposed loads –L/200
- Deflection limit applied to suction loads –L/150
CCP recommend the use of 0.7mm thick material for roof cladding
Related products
-
Save 40%
Original Price £10.00Current Price £6.00 INC VATCLEARANCE - Light Grey 90 Degree Corner 125mm x 125mm x 2500mm
End of Line Light Grey Barge Boards: Enhance Your Roof's Aesthetics Upgrade the appearance of your roof with our End of Line Light Grey Barge Board...
View full details -
Save Liquid error (snippets/product-badge line 32): Computation results in '-Infinity'%

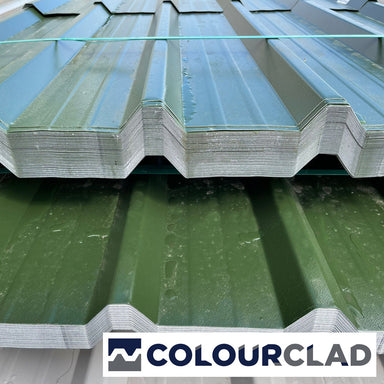

from £27.45 INC VATCLEARANCE 32/1000 Box Profile 0.55 Thick Plastisol Roof Sheet Juniper Green 1000mm Width
Colour Clad Profiles 32/1000 Single Skin 0.55mm Plastisol (PVC finish) Box Profile Sheets deliver an effective solution for your roofing requiremen...
View full details -
Save Liquid error (snippets/product-badge line 32): Computation results in '-Infinity'%

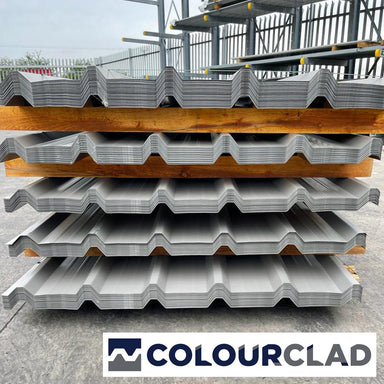

from £27.45 INC VATCLEARANCE 32/1000 Box Profile 0.55 Thick Plastisol Roof Sheet Goosewing Grey 1000mm Width
Colour Clad Profiles 32/1000 Single Skin 0.55mm Plastisol (PVC finish) Box Profile Sheets deliver an effective solution for your roofing requiremen...
View full details -
Sold out

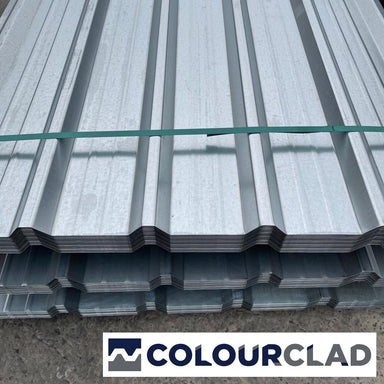

from INC VATCLEARANCE 32/1000 Box Profile 0.6 Plain Galvanised 1000mm Width
