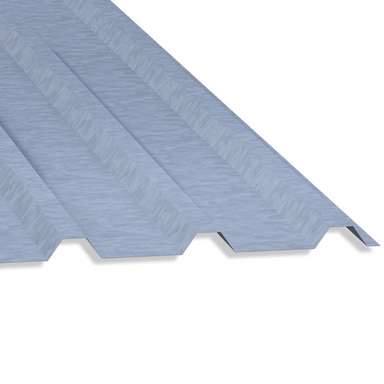

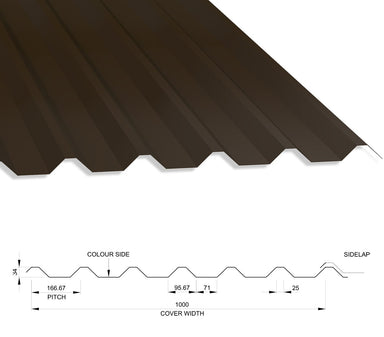

34/1000 box profile 0.5 thick galvanised roofing sheets are one of our most popular sheets, with each single skin sheet having 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1000mm when installed, these 34/1000 box profile sheets give you a simple yet strong way to cover your build. Each 34/1000 box profile sheet will give your roof a secure weatherproof lap from sheet to sheet.

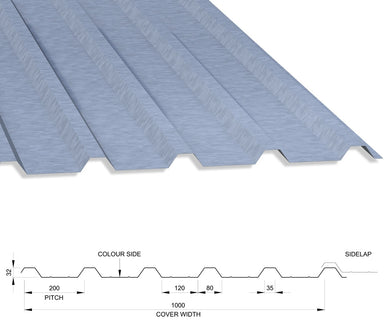

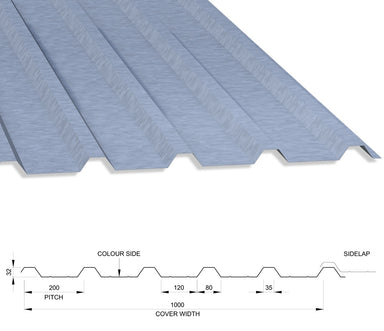

SHEET MEASUREMENTS

Cover Width: 1000mm when lapped
Profile Height: 32mm
Pitch: 200mm
Sheet Thickness: 0.5mm or 0.7mm
Minimum Roof Pitch: 4 Degrees
Max Sheet Length: 8m in 0.5mm thickness and upto 10m in 0.7mm thickness
Colours: Galvanised

LOAD SPAN TABLES

Imposed Load (+ve)

Narrow Flange in Compression (Single Span)

Deflection Limit L/200 *

FACTORED IMPOSED LOADS (kN/m2) (positive +ve)
Thickness (mm)	Weight (kg/m2)	Span Condition	Span (m)
Thickness (mm)	Weight (kg/m2)	Span Condition	1.00	1.10	1.20	1.30	1.40	1.50	1.60	1.70	1.80	1.90	2.00	2.10	2.20	2.30	2.40
0.50	4.90	Single	3.47	2.85	2.38	2.02	1.73	1.50	1.23	1.02	0.86	0.72	0.62	0.53	-	-	-
		Double	2.27	1.96	1.71	1.50	1.34	1.19	1.07	0.97	0.88	0.81	0.74	0.68	0.63	0.58	0.54
		Multi	2.70	2.33	2.04	1.80	1.60	1.43	1.29	1.17	1.07	0.98	0.90	0.83	0.76	0.67	0.59
0.70	6.41	Single	6.00	4.92	4.11	3.48	2.82	2.28	1.87	1.55	1.30	1.10	0.94	0.81	0.71	0.62	0.54
		Double	3.83	3.29	2.86	2.51	2.22	1.98	1.77	1.60	1.45	1.32	1.21	1.11	1.03	0.95	0.88
		Multi	4.57	3.94	3.43	3.02	2.67	2.39	2.14	1.94	1.76	1.61	1.47	1.35	1.18	1.03	0.90

Wind Suction Load (-ve)

Broad Flange in Compression (Single Span)

Deflection Limit L/150 *

FACTORED IMPOSED LOADS (kN/m2) (positive +ve)
Thickness (mm)	Weight (kg/m2)	Span Condition	Span (m)
Thickness (mm)	Weight (kg/m2)	Span Condition	1.00	1.10	1.20	1.30	1.40	1.50	1.60	1.70	1.80	1.90	2.00	2.10	2.20	2.30	2.40
0.50	4.90	Single	3.90	3.22	2.71	2.31	1.99	1.73	1.52	1.27	1.07	0.91	0.78	0.68	0.59	0.51	-
		Double	3.67	3.04	2.55	2.17	1.87	1.63	1.44	1.27	1.13	1.02	0.92	0.83	0.76	0.69	0.64
		Multi	4.59	3.80	3.19	2.72	2.34	2.04	1.79	1.59	1.42	1.27	1.15	1.04	0.95	0.86	0.75
0.70	6.41	Single	6.02	4.98	4.18	3.56	3.07	2.68	2.32	1.93	1.63	1.39	1.19	1.03	0.89	0.78	0.69
		Double	6.34	5.24	4.40	3.75	3.24	2.82	2.48	2.19	1.96	1.76	1.59	1.44	1.31	1.20	1.10
		Multi	7.93	6.55	5.51	4.69	4.05	3.52	3.10	2.74	2.45	2.20	1.98	1.71	1.49	1.30	1.15

Notes:

This table has been produced for roof cladding applications. However, it can be safely used for wall cladding.
Safe Imposed loads factored by 1.6 Wind suction loads factored by 1.4
Deflection limit applied to imposed loads –L/200
Deflection limit applied to suction loads –L/150

CCP recommend the use of 0.7mm thick material for roof cladding
