Colour Clad Profiles 32/1000 Single Skin 0.7mm PVC Plastisol Box Profile Sheets deliver an effective solution for your roofing requirements. Colour Clad can manufacture this profile with or without strengthening ribs which add an additional strength to the profile and an aesthetic quality. Our sheets can be used for domestic, commercial and... Read more
Clearance 32/1000 Box Profile 0.7 PVC Plastisol Metal Sheet Goosewing Grey

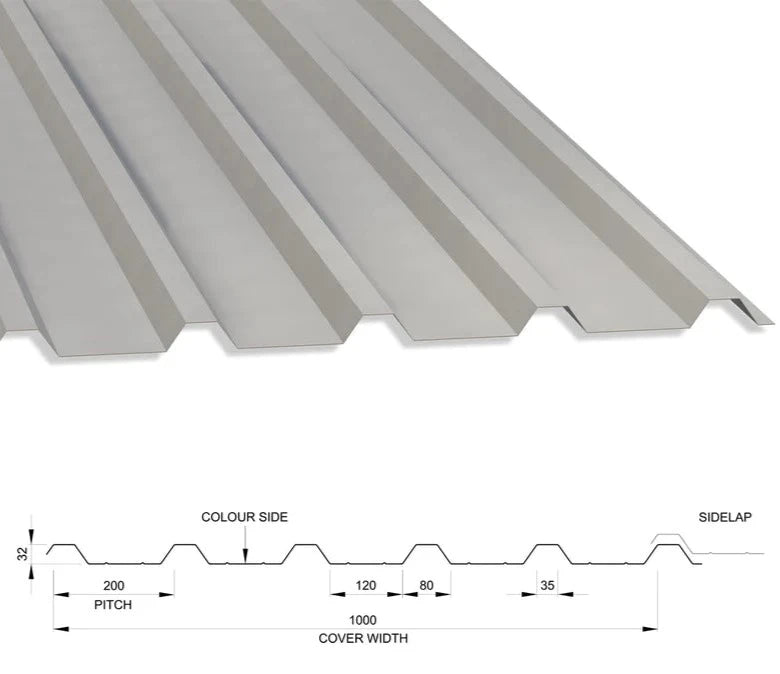

Colour Clad Profiles 32/1000 Single Skin 0.7mm PVC Plastisol Box Profile Sheets deliver an effective solution for your roofing requirements. Colour Clad can manufacture this profile with or without strengthening ribs which add an additional strength to the profile and an aesthetic quality. Our sheets can be used for domestic, commercial and industrial applications and offer a high-quality, cost effective solution for your roofing projects. CCP32/1000 offers a 200mm pitch across the sheet width and 32mm profile height, these sheets have a wider gulley which can be easier to walk on during the fitting process, it is wide enough for a stable footing. CCP 32/1000 Polyester (paint finish) sheeting is manufactured using Prime material and manufactured in house ensuring quality is delivered every time. Each of our sheets offer a meter cover width when lapped. If you would like to see what other Box Profile Profiles we offer please click here
- Cover Width: 1000mm when lapped
- Profile Height: 32mm
- Pitch: 200mm
- Sheet Thickness: 0.5mm
- Minimum Roof Pitch: 4 Degrees
- Weight: 0.5mm = 4.9kg per/m approx.
- Max Sheet Length: 8m in 0.5mm thickness, if you require longer please look at our 0.7mm thickness
- Colours: Juniper Green, Anthracite Grey, Goosewing Grey
Imposed Load (+ve)
Narrow Flange in Compression (Single Span)
Deflection Limit L/200 *
FACTORED IMPOSED LOADS (kN/m2) (positive +ve) |
|||||||||||||||||
Thickness (mm) |
Weight (kg/m2) |
Span Condition |
Span (m) |
||||||||||||||
1.00 |
1.10 |
1.20 |
1.30 |
1.40 |
1.50 |
1.60 |
1.70 |
1.80 |
1.90 |
2.00 |
2.10 |
2.20 |
2.30 |
2.40 |
|||
0.50 |
4.90 |
Single |
3.47 |
2.85 |
2.38 |
2.02 |
1.73 |
1.50 |
1.23 |
1.02 |
0.86 |
0.72 |
0.62 |
0.53 |
- |
- |
- |
Double |
2.27 |
1.96 |
1.71 |
1.50 |
1.34 |
1.19 |
1.07 |
0.97 |
0.88 |
0.81 |
0.74 |
0.68 |
0.63 |
0.58 |
0.54 |
||
Multi |
2.70 |
2.33 |
2.04 |
1.80 |
1.60 |
1.43 |
1.29 |
1.17 |
1.07 |
0.98 |
0.90 |
0.83 |
0.76 |
0.67 |
0.59 |
||
0.70 |
6.41 |
Single |
6.00 |
4.92 |
4.11 |
3.48 |
2.82 |
2.28 |
1.87 |
1.55 |
1.30 |
1.10 |
0.94 |
0.81 |
0.71 |
0.62 |
0.54 |
Double |
3.83 |
3.29 |
2.86 |
2.51 |
2.22 |
1.98 |
1.77 |
1.60 |
1.45 |
1.32 |
1.21 |
1.11 |
1.03 |
0.95 |
0.88 |
||
Multi |
4.57 |
3.94 |
3.43 |
3.02 |
2.67 |
2.39 |
2.14 |
1.94 |
1.76 |
1.61 |
1.47 |
1.35 |
1.18 |
1.03 |
0.90 |
Wind Suction Load (-ve)
Broad Flange in Compression (Single Span)
Deflection Limit L/150 *
FACTORED IMPOSED LOADS (kN/m2) (positive +ve) |
|||||||||||||||||
Thickness (mm) |
Weight (kg/m2) |
Span Condition |
Span (m) |
||||||||||||||
1.00 |
1.10 |
1.20 |
1.30 |
1.40 |
1.50 |
1.60 |
1.70 |
1.80 |
1.90 |
2.00 |
2.10 |
2.20 |
2.30 |
2.40 |
|||
0.50 |
4.90 |
Single |
3.90 |
3.22 |
2.71 |
2.31 |
1.99 |
1.73 |
1.52 |
1.27 |
1.07 |
0.91 |
0.78 |
0.68 |
0.59 |
0.51 |
- |
Double |
3.67 |
3.04 |
2.55 |
2.17 |
1.87 |
1.63 |
1.44 |
1.27 |
1.13 |
1.02 |
0.92 |
0.83 |
0.76 |
0.69 |
0.64 |
||
Multi |
4.59 |
3.80 |
3.19 |
2.72 |
2.34 |
2.04 |
1.79 |
1.59 |
1.42 |
1.27 |
1.15 |
1.04 |
0.95 |
0.86 |
0.75 |
||
0.70 |
6.41 |
Single |
6.02 |
4.98 |
4.18 |
3.56 |
3.07 |
2.68 |
2.32 |
1.93 |
1.63 |
1.39 |
1.19 |
1.03 |
0.89 |
0.78 |
0.69 |
Double |
6.34 |
5.24 |
4.40 |
3.75 |
3.24 |
2.82 |
2.48 |
2.19 |
1.96 |
1.76 |
1.59 |
1.44 |
1.31 |
1.20 |
1.10 |
||
Multi |
7.93 |
6.55 |
5.51 |
4.69 |
4.05 |
3.52 |
3.10 |
2.74 |
2.45 |
2.20 |
1.98 |
1.71 |
1.49 |
1.30 |
1.15 |
Notes
- This table has been produced for roof cladding applications. However, it can be safely used for wall cladding.
- Safe Imposed loads factored by 1.6 Wind suction loads factored by 1.4
- Deflection limit applied to imposed loads –L/200
- Deflection limit applied to suction loads –L/150
CCP recommend the use of 0.7mm thick material for roof cladding
