34/1000 box profile 0.5 thick galvanised roofing sheets are one of our most popular sheets, with each single skin sheet having 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1000mm when installed, these 34/1000 box profile sheets give you a simple yet... Read more
34/1000 Box Profile 0.7 Thick Galvanised Roof Sheet 1000mm Width
34/1000 box profile 0.5 thick galvanised roofing sheets are one of our most popular sheets, with each single skin sheet having 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1000mm when installed, these 34/1000 box profile sheets give you a simple yet strong way to cover your build. Each 34/1000 box profile sheet will give your roof a secure weatherproof lap from sheet to sheet.

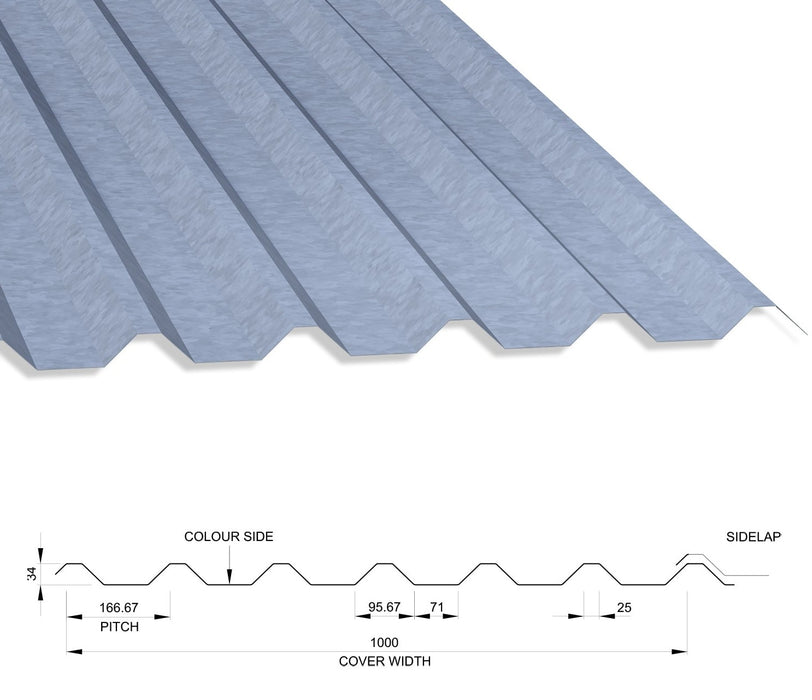

34/1000 Box Profile Measurements:
- External Face: Profiled 34/1000, 34mm profile height, 166mm pitch centres
- Standard Width: 1000mm when lapped
- Max Length: 7m in 0.5mm sheet thickness
- Minimum Pitch: 4 degrees
- Gauge Thickness: 0.5mm
- Weight: 0.5mm thickness – 4.9kg/m2,
Uses for 34/1000 Box Profile Sheets 0.5mm Galvanised Roof Sheet:
Most commonly seen on industrial, agricultural and commercial buildings our 34/1000 box profile sheets can also be used for domestic buildings where required. Available as a single skin sheet it can be used to build up an insulated system, over clad an existing roof or on its own to provide a solid weatherproof covering on any building. It is also suitable for roof application of 4 degrees or higher.
Benefits of 34/1000 Box Profile Sheets 0.5mm Galvanised Roof Sheet:
Fast and easy to fit, this lightweight 34/1000 box profile sheet is our most cost-effective way to cover your building. Available in different colours and independently tested to current CE EN 14782 requirements, these 34/1000 box profile roof sheets will provide you with a long-lasting and low maintenance solution for many years to come.
Application: | Wall or Roof |
External Finish: | Galvanised |
External Face: | Profiled 34/1000, 34mm profile height, 166mm pitch centres |
Standard Width: | 1000mm when lapped |
Max Length: | 7m |
Minimum Pitch: | 4 degrees |
Gauge Thickness: | 0.5mm |
Weight: | 4.9kg/m2 |
When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fixings in lower part of profile.
Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding.
Permissable downward (imposed) loads in kN/m2
Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
0.50mm | 4.78 | single | 3.49 | 2.52 | 1.91 | 1.37 | 0.99 | - | - | - | - | - |
double | 2.58 | 2 | 1.6 | 1.3 | 1.09 | 0.92 | 0.79 | - | - | - | ||
multi | 3.15 | 2.45 | 1.96 | 1.6 | 1.34 | 1.13 | 0.86 | - | - | - | ||
0.70mm | 6.22 | single | 5.77 | 4.17 | 2.74 | 1.9 | 1.37 | 1.02 | 0.78 | - | - | - |
double | 4.12 | 3.18 | 2.53 | 2.06 | 1.72 | 1.45 | 1.2 | 0.94 | 0.75 | - | ||
multi | 5.04 | 3.9 | 3.11 | 2.54 | 2.11 | 1.57 | 1.2 | 0.94 | 0.75 | - |
Permissable wind uplifts (negative) loads in kN/m2
Click here for all of our Anti-con products
Anti-Con is an effective solution to combat the effects of water condensation on the underside of your roof cladding. Colour Clad apply the Anti-Con (DR!PSTOP) lining during the manufacturing process, its rolled simultaneously with the steel through or profiling mill and applied to the reverse of the roofing sheet.
DR!PSTOP is perfect for single skin applications to ensure any humidity in the air evaporates and is absorbed in locations where it is important that the condensation is under control, Anti-Con is ideal for;
- Chill Rooms
- Work Shops
- Equestrian and Agricultural Buildings
- Garden Sheds/Summer Houses
- Garages
- Grain Stores
As previously mentioned we apply the Anti-Con lining during the roll forming stage, when rolling the roofing sheets we allow the overlap edge to be free of Anti-Con, this in turn will minimise the risk of water being drawn into the lap through symphonic action.
How It Works
Colour Clad Profiles DR!PSTOP solution helps to control condensation in environments where it occurs often. For Anti-Con to work effectively the building has to be adequately ventilated to allow the Anti-Con fleece to dry out between cycles. Ideally the ridge and eaves should be left open without the use of foam fillers, if the use of foam fillers is a requirement then an alternative roof construction should be considered. The roof pitch also has a significant bearing on the products performance and a minimum roof pitch of 10° is recommended, for roof pitches below 10° please seek advice from our sales team.
When Colour Clad Profiles Anti-Con is used in a livestock situation the humidity generated by these animals can be quite high, the table below shows the moisture levels produced by livestock and the area required by each animal to keep humidity levels under 80gm/m²/hour.
Animal | Weight | Moisture Produced | Area Requirement Per Animal |
Cows | 500kg | 361gm/hour | 4.51m² |
Horses | 500kg | 361gm/hour | 4.51m² |
Sheep | 100kg | 83gm/hour | 1.04m² |
Pigs | 100kg | 83gm/hour | 1.04m² |
Chickens | 2.2kg | 5.5gm/hour | 0.07m² |
Storage of your Anti-Con Sheets
Anti-Con lined roofing sheets should be stored (where possible) indoors prior to installation, where this is not possible the packs of material must be stored off the ground and kept dry. Profiled sheets should not be allowed to slide on each other or onto steelwork as this will minimise the chance of the fleece becoming damaged and snagging. If the backing coat becomes dirty it can be cleaned using a pressure washer if possible, in the case of livestock buildings this should be done once a year with a solution containing fungicide.
