34/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet White (00E55) 1000mm Width

CCP34/1000 box profile single skin roofing sheets in 0.7mm offer a strong roof profile, with strengthening ribs in the gully for additional strength. Our 34/1000 profile is ideal for any roofing projects you may be looking to complete. They can be used for home projects, commercial and industrial applications. CCP34/1000 offers a... Read more

£19.20 INC VAT
Title

CCP34/1000 box profile single skin roofing sheets in 0.7mm offer a strong roof profile, with strengthening ribs in the gully for additional strength. Our 34/1000 profile is ideal for any roofing projects you may be looking to complete. They can be used for home projects, commercial and industrial applications. CCP34/1000 offers a 166.67mm pitch across the sheet width and 34mm profile height. This sheet is manufactured using prime colour coated material delivering a 1000mm cover width when lapped. If you would like to see what other profiles we offer please click here.

Measurements of 34/1000 Box Profile Sheets:

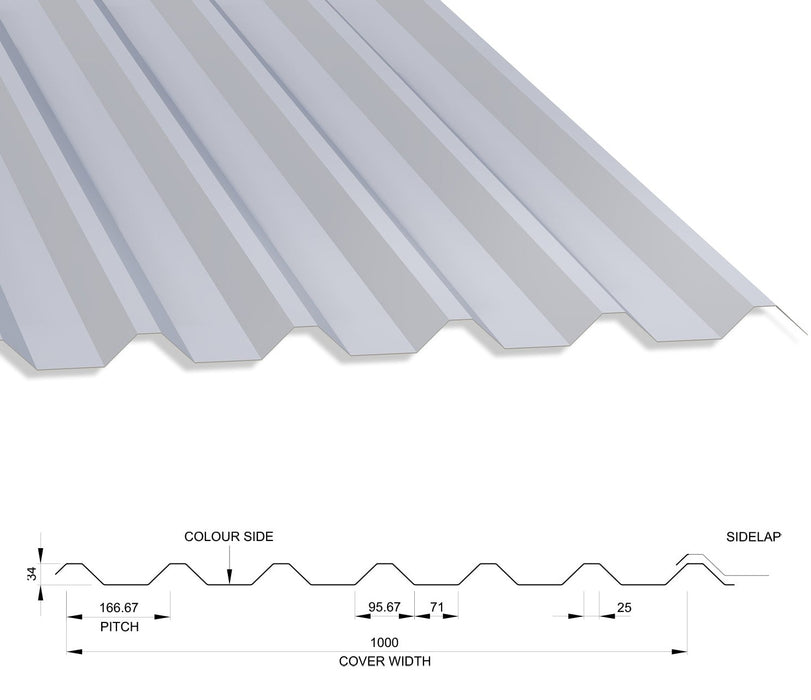

  • External Face: Profiled 34/1000, 34mm profile height, 166.67mm pitch centres
  • Standard Width: 1000mm when lapped
  • Max Length: 10m in 0.7mm sheet thickness
  • Minimum Pitch: 4 degrees
  • Gauge Thickness: 0.7mm
  • Weight: 0.7mm sheet thickness – 6.22kg/m2 approximately

Uses of 32/1000 Box Profile Roof Sheets:

All of our profiled roofing sheets can be used for domestic, commercial, industrial and agricultural roofing and cladding projects. Profiled roofing sheets can be used as single skin sheeting, over clad of an existing roof or part of our CCP built-up insulated system.

We can manufacture these sheets to you specific cutting requirements, which reduces the amount of wastage and cost you will have on any projects. They are simple to fit using our fixings and accessories, if you require more detail or have any questions please call 01278 557002.

Application: Wall or Roof
External Finish: PVC Plastisol
Internal Finish: Light grey Polyester
External Face: Profiled 34/1000, 34mm profile height, 166.67mm pitch centres
Standard Width: 1000mm when lapped
Max Length: 9m in 0.7mm sheet thickness
Minimum Pitch: 4 degrees
Gauge Thickness: 0.7mm
Weight: 0.7mm sheet thickness – 6.22kg/m2

When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fixings in lower part of profile.

Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding.

Permissable downward (imposed) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



Permissable wind uplifts (negative) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8



Click here for all of our Anti-con products

Anti-Con is an effective solution to combat the effects of water condensation on the underside of your roof cladding.  Colour Clad apply the Anti-Con (DR!PSTOP) lining during the manufacturing process, its rolled simultaneously with the steel through or profiling mill and applied to the reverse of the roofing sheet.

DR!PSTOP is perfect for single skin applications to ensure any humidity in the air evaporates and is absorbed in locations where it is important that the condensation is under control, Anti-Con is ideal for;

  • Chill Rooms
  • Work Shops
  • Equestrian and Agricultural Buildings
  • Garden Sheds/Summer Houses
  • Garages
  • Grain Stores

As previously mentioned we apply the Anti-Con lining during the roll forming stage, when rolling the roofing sheets we allow the overlap edge to be free of Anti-Con, this in turn will minimise the risk of water being drawn into the lap through symphonic action.

How It Works

Colour Clad Profiles DR!PSTOP solution helps to control condensation in environments where it occurs often. For Anti-Con to work effectively the building has to be adequately ventilated to allow the Anti-Con fleece to dry out between cycles. Ideally the ridge and eaves should be left open without the use of foam fillers, if the use of foam fillers is a requirement then an alternative roof construction should be considered. The roof pitch also has a significant bearing on the products performance and a minimum roof pitch of 10° is recommended, for roof pitches below 10° please seek advice from our sales team.

When Colour Clad Profiles Anti-Con is used in a livestock situation the humidity generated by these animals can be quite high, the table below shows the moisture levels produced by livestock and the area required by each animal to keep humidity levels under 80gm/m²/hour.



Animal

Weight

Moisture Produced

Area Requirement Per Animal

Cows

500kg

361gm/hour

4.51m²

Horses

500kg

361gm/hour

4.51m²

Sheep

100kg

83gm/hour

1.04m²

Pigs

100kg

83gm/hour

1.04m²

Chickens

2.2kg

5.5gm/hour

0.07m²


Storage of your Anti-Con Sheets

Anti-Con lined roofing sheets should be stored (where possible) indoors prior to installation, where this is not possible the packs of material must be stored off the ground and kept dry. Profiled sheets should not be allowed to slide on each other or onto steelwork as this will minimise the chance of the fleece becoming damaged and snagging. If the backing coat becomes dirty it can be cleaned using a pressure washer if possible, in the case of livestock buildings this should be done once a year with a solution containing fungicide.
