13/3 Corrugated Roofing Sheets – 0.5mm Plastisol (PVC Finish) Ideal for Barns, Sheds, Garages & Industrial Roofs | Made in the UK Our 13/3 Corrugated Roofing Sheets (0.5mm Plastisol) combine a classic, traditional profile with modern performance – perfect for both professional roofing contractors and DIY users. Whether you’re... Read more
13/3 Corrugated 0.5 Thick PVC Plastisol Coated Roof Sheet White (00E55) 1000mm Width With Anticon

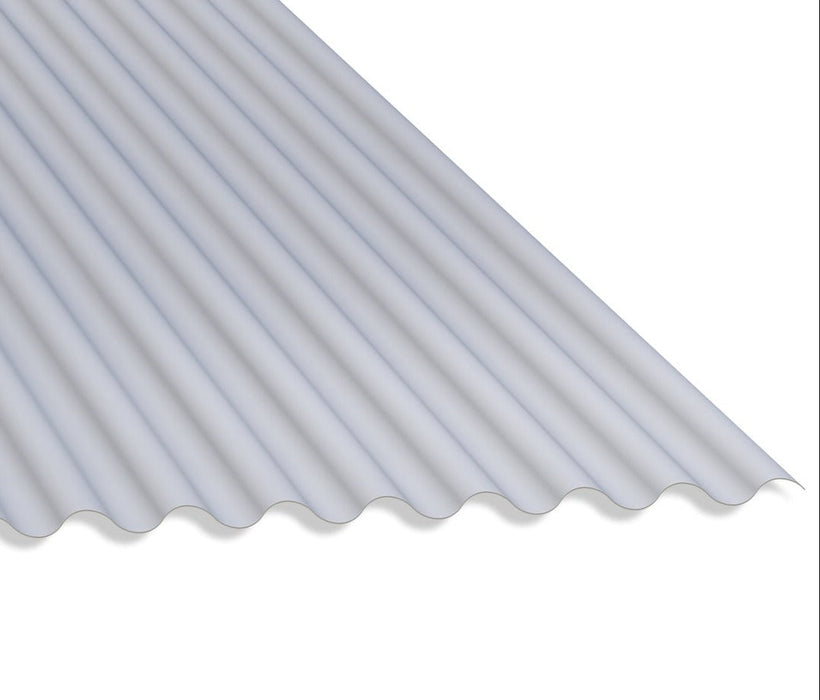

13/3 Corrugated Roofing Sheets – 0.5mm Plastisol (PVC Finish)
Ideal for Barns, Sheds, Garages & Industrial Roofs | Made in the UK
Our 13/3 Corrugated Roofing Sheets (0.5mm Plastisol) combine a classic, traditional profile with modern performance – perfect for both professional roofing contractors and DIY users. Whether you’re reroofing a barn, shed, garage or outbuilding, these durable sheets offer a cost-effective solution trusted across the UK.
🛠️ Made to order in your required lengths
✅ Manufactured in-house from prime steel
🚚 Fast UK delivery – direct to site or home
Why Choose Colour Clad 13/3 Corrugated Sheets?
-
Classic 13/3 Profile – 76.2mm pitch with a 19mm profile height
-
Durable Plastisol (PVC) Finish – Weatherproof, low-maintenance surface
-
0.5mm Thickness – Lightweight and easy to handle, perfect for DIY
-
Versatile Use – Ideal for agricultural buildings, workshops, lean-tos, and garages
-
Easy Installation – Traditional rounded profile makes it simple to fit
Whether you're a tradesperson working on large projects or a homeowner tackling a self-build, our 13/3 corrugated steel roofing sheets deliver long-lasting results at great value.
Technical Specifications
Specification | Detail |
---|---|
Cover Width | 990mm (when lapped) |
Profile Height | 19mm |
Pitch | 76.2mm |
Sheet Thickness | 0.5mm |
Minimum Roof Pitch | 4° |
Weight | Approx. 4.9kg per m² |
Max Sheet Length (0.5mm) | 8m (Use 0.7mm for longer lengths) |
Available Colours | Juniper Green, Slate Blue, Goosewing Grey, Anthracite Grey, Merlin Grey, Olive Green, Terracotta, Sargasso, Ocean Blue, White, Van-Dyke Brown, Galvanised |
Load Span Performance
Our corrugated sheeting meets strict performance and durability requirements for both roofing and wall cladding applications. Refer to our load span tables for imposed and wind suction loads. For roof cladding, we recommend upgrading to 0.7mm thickness for enhanced strength.
Imposed Load (+ve)
Narrow Flange in Compression (Single Span)
Deflection Limit L/200 *
FACTORED IMPOSED LOADS (kN/m2) (positive +ve) |
|||||||||||||||||
Thickness (mm) |
Weight (kg/m2) |
Span Condition |
Span (m) |
||||||||||||||
1.00 |
1.10 |
1.20 |
1.30 |
1.40 |
1.50 |
1.60 |
1.70 |
1.80 |
1.90 |
2.00 |
2.10 |
2.20 |
2.30 |
2.40 |
|||
0.50 |
4.95 |
Single |
1.58 |
1.17 |
0.89 |
0.70 |
0.56 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
Double |
2.03 |
1.74 |
1.51 |
1.32 |
1.17 |
1.04 |
0.89 |
0.74 |
0.62 |
0.52 |
- |
- |
- |
- |
- |
||
Multi |
2.43 |
1.95 |
1.49 |
1.16 |
0.93 |
0.75 |
0.61 |
0.51 |
- |
- |
- |
- |
- |
- |
- |
||
0.70 |
6.47 |
Single |
2.34 |
1.74 |
1.33 |
1.04 |
0.83 |
0.67 |
0.55 |
- |
- |
- |
- |
- |
- |
- |
- |
Double |
3.66 |
3.10 |
2.66 |
2.31 |
1.99 |
1.61 |
1.32 |
1.10 |
0.92 |
0.78 |
0.67 |
0.57 |
- |
- |
- |
||
Multi |
3.91 |
2.90 |
2.22 |
1.73 |
1.38 |
1.11 |
0.91 |
0.76 |
0.64 |
0.54 |
- |
- |
- |
- |
- |
Wind Suction Load (-ve)
Broad Flange in Compression (Single Span)
Deflection Limit L/150 *
FACTORED IMPOSED LOADS (kN/m2) (positive +ve) |
|||||||||||||||||
Thickness (mm) |
Weight (kg/m2) |
Span Condition |
Span (m) |
||||||||||||||
1.00 |
1.10 |
1.20 |
1.30 |
1.40 |
1.50 |
1.60 |
1.70 |
1.80 |
1.90 |
2.00 |
2.10 |
2.20 |
2.30 |
2.40 |
|||
0.50 |
4.95 |
Single |
1.87 |
1.41 |
1.08 |
0.85 |
0.68 |
0.55 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
Double |
3.10 |
2.56 |
2.15 |
1.83 |
1.58 |
1.33 |
1.10 |
0.92 |
0.77 |
0.66 |
0.56 |
- |
- |
- |
- |
||
Multi |
3.12 |
2.34 |
1.80 |
1.42 |
1.14 |
0.92 |
0.76 |
0.63 |
0.53 |
- |
- |
- |
- |
- |
- |
||
0.70 |
6.47 |
Single |
2.78 |
2.09 |
1.61 |
1.27 |
1.01 |
0.82 |
0.68 |
0.57 |
- |
- |
- |
- |
- |
- |
- |
Double |
4.56 |
3.77 |
3.17 |
2.70 |
2.33 |
1.99 |
1.64 |
1.36 |
1.15 |
0.98 |
0.84 |
0.72 |
0.63 |
0.55 |
- |
||
Multi |
4.64 |
3.49 |
2.68 |
2.11 |
1.69 |
1.37 |
1.13 |
0.94 |
0.80 |
0.68 |
0.58 |
0.50 |
- |
- |
- |
Who Is This Product For?
✔ Homeowners building or upgrading garages, sheds or lean-tos
✔ Farmers cladding barns, stables or agricultural units
✔ Contractors needing a reliable profile for commercial or industrial roofs
✔ Merchants supplying a popular, time-tested corrugated sheet
Local & Nationwide Delivery
Manufactured at our facility in Somerset, we deliver directly across the South West, Midlands, South East and all areas of the UK. We work with trade and DIY customers to ensure fast turnaround and reliable supply.
Order or Get Advice
📞 Call 01278 557002
📧 Email info@colourcladprofiles.com for a quote, lead times or to check stock.
Click here for all of our Anti-con products
Anti-Con is an effective solution to combat the effects of water condensation on the underside of your roof cladding. Colour Clad apply the Anti-Con (DR!PSTOP) lining during the manufacturing process, its rolled simultaneously with the steel through or profiling mill and applied to the reverse of the roofing sheet.
DR!PSTOP is perfect for single skin applications to ensure any humidity in the air evaporates and is absorbed in locations where it is important that the condensation is under control, Anti-Con is ideal for;
- Chill Rooms
- Work Shops
- Equestrian and Agricultural Buildings
- Garden Sheds/Summer Houses
- Garages
- Grain Stores
As previously mentioned we apply the Anti-Con lining during the roll forming stage, when rolling the roofing sheets we allow the overlap edge to be free of Anti-Con, this in turn will minimise the risk of water being drawn into the lap through symphonic action.
How It Works
Colour Clad Profiles DR!PSTOP solution helps to control condensation in environments where it occurs often. For Anti-Con to work effectively the building has to be adequately ventilated to allow the Anti-Con fleece to dry out between cycles. Ideally the ridge and eaves should be left open without the use of foam fillers, if the use of foam fillers is a requirement then an alternative roof construction should be considered. The roof pitch also has a significant bearing on the products performance and a minimum roof pitch of 10° is recommended, for roof pitches below 10° please seek advice from our sales team.
When Colour Clad Profiles Anti-Con is used in a livestock situation the humidity generated by these animals can be quite high, the table below shows the moisture levels produced by livestock and the area required by each animal to keep humidity levels under 80gm/m²/hour.
Animal | Weight | Moisture Produced | Area Requirement Per Animal |
Cows | 500kg | 361gm/hour | 4.51m² |
Horses | 500kg | 361gm/hour | 4.51m² |
Sheep | 100kg | 83gm/hour | 1.04m² |
Pigs | 100kg | 83gm/hour | 1.04m² |
Chickens | 2.2kg | 5.5gm/hour | 0.07m² |
Storage of your Anti-Con Sheets
Anti-Con lined roofing sheets should be stored (where possible) indoors prior to installation, where this is not possible the packs of material must be stored off the ground and kept dry. Profiled sheets should not be allowed to slide on each other or onto steelwork as this will minimise the chance of the fleece becoming damaged and snagging. If the backing coat becomes dirty it can be cleaned using a pressure washer if possible, in the case of livestock buildings this should be done once a year with a solution containing fungicide.
