ThermoBase™ 40mm PUR Insulated Roof Panel – 3-Rib Profile

ThermoBase™ 40mm PUR Insulated Roof Panel – 3-Rib Profile
by Colour Clad Profiles Ltd

ThermoBase™ 40 – 40mm PUR Insulated Roof Panel (3-Rib) Now in stock at Colour Clad: ThermoBase™ 40 is our latest-generation 40mm PUR core roof panel with 3-rib trapezoidal profile and superior thermal resistance, designed for agricultural, industrial, commercial and DIY roofing applications across the UK. Built with a high-density polyurethane (PUR)... Read more

£50.40 INC VAT
Truck

Lightning-speed delivery across the UK!
With our in-house fleet and dedicated team, your roofing orders are guaranteed to arrive on time. No matter the size, Experience the fastest service nationwide!

Person carrying a box

Need it pronto?
Click, collect stock items, and conquer your to-do list in under an hour! Swing by and find your order prepped and waiting. 01278 557002 to double-check stock levels. We can make it happen.

Click here to view all of our sheets manufactured with Anticon.

Description

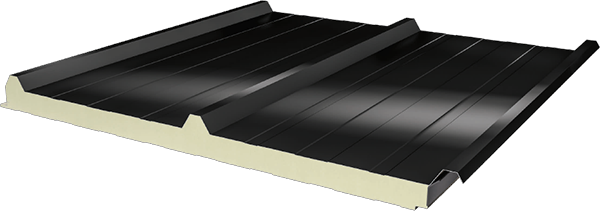

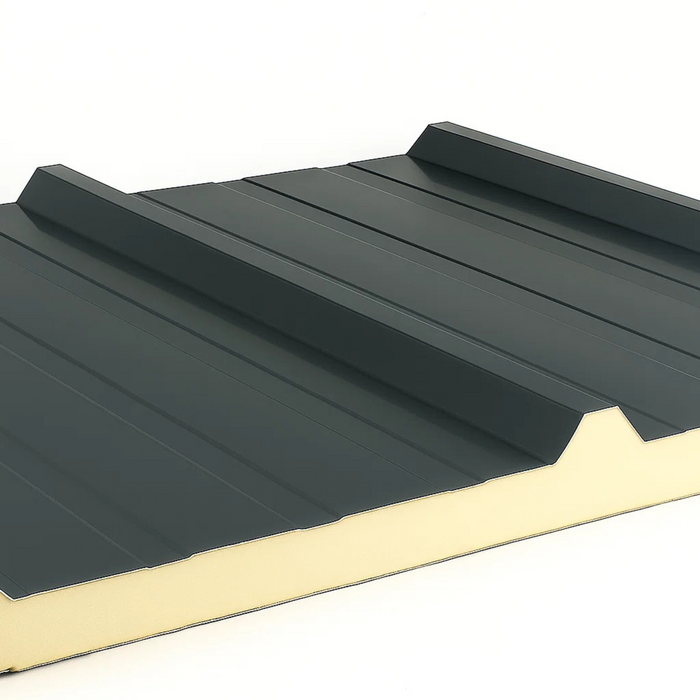

ThermoBase™ 40 – 40mm PUR Insulated Roof Panel (3-Rib)

Now in stock at Colour Clad: ThermoBase™ 40 is our latest-generation 40mm PUR core roof panel with 3-rib trapezoidal profile and superior thermal resistance, designed for agricultural, industrial, commercial and DIY roofing applications across the UK.

Built with a high-density polyurethane (PUR) 35kg/m3 insulation core and steel-faced outer and inner sheets (0.50 mm / 0.40 mm), the ThermoBase™ 40 delivers both strength and thermal efficiency. This panel is supplied with no cutback for simplified and flexible fitting, making it ideal for tight flashing details or where custom overlaps are preferred.

Key Specifications

  • Core Thickness: 40mm PUR (Polyurethane)
  • Profile: 3-Rib, ThermoBase™
  • Outer Sheet: 0.40mm Polyester-coated steel
  • Inner Sheet: 0.40mm Polyester-coated steel
  • Cover Width: 1000mm
  • Cutback: None (Flat-end) - can be manually done on site.
  • Panel Lengths: 3m – 8m
  • Application: Roof & Walls

PUR Disclaimer

This product uses a rigid polyurethane (PUR) insulation core. PUR is a high-performance thermal insulator, but it is not non-combustible. Please ensure suitability for your building class and fire regulations. For projects requiring Euroclass A-rated non-combustible panels, please explore our JI1000 alternatives or contact our technical team for guidance.

Certifications

  • CE Certified – EN 14509 Compliant
  • ISO 9001:2008 Quality Management Standard

Thermal Performance

Core Thickness (mm) U-Value (W/m²K) R-Value (m²K/W)
40 0.49 2.03
50 0.40 2.48
60 0.34 2.94
80 0.26 3.85
100 0.21 4.75


Load Span Table (Multi-Span Roof Applications)

Uniform distributed load in kg/m² based on span centre (L/200 deflection limit):

Core Thickness (mm) 1.00m 1.50m 2.00m 2.50m 3.00m
40 290 169 121 94 70
50 353 211 152 119 86
60 403 246 179 141 102
80 485 305 225 177 135
100 552 355 263 206 166


Nationwide Delivery & Trade Discounts

Trade customer? Enjoy bulk discounts and full UK-wide delivery from Colour Clad’s own transport network. For larger project quantities or merchant resales, get in touch at info@colourcladprofiles.com.
